鏈條張緊器托架
- 鏈條驅動必備，鏈條張緊器FR惰輪
- 鏈條的大量松弛會造成振動、噪音，導衹與鏈輪的嚙合不良等，無法進行順暢的鏈條傳動。
- 椿本鏈張緊器調整鏈條松弛度，使鏈條傳動保持正常。
- FR惰輪是附帶輪轂的軸承，能傳遞穩定的旋轉。
鏈條張緊器
| 產品名稱和特徵 | ||
|---|---|---|
|
CT-TCS型 這是一款帶有擺動式吊鏈的張緊器。 *前往傳動鏈條配件頁面。 |
詳細信息 |
|
CT-ETS型 這是一款直動式、附帶惰輪的張緊器。 *前往傳動鏈條配件頁面。 |
詳細信息 |
|
CT-TA型 這是一款帶塑料靴的直動式張緊器。 *前往傳動鏈條配件頁面。 |
詳細信息 |
|
CT-TH型 可選擇惰輪，使用更簡單方便 *前往傳動鏈條配件頁面。 |
詳細信息 |
FR惰輪
- 附帶輪轂的軸承，可傳遞穩定的旋轉。
- 有豐富的品種。也可以作為鏈張緊器CT-TH型的托架使用。
- *滾珠軸承規格和無油套筒規格2種
應用實例
在軸間距離較長時防止松弛
多軸驅動時的中間導輪
鏈條卷角不足時
型號表示例
| FR | B | - | RS40 | - | 15T | - | N |
| ｜ ｜ ｜ ｜ ｜ |
｜ ｜ |
| 尺寸 |
| 齒數 |
| 表面處理 |
|||
| 軸承規格 B:滾珠軸承規格 L:無油套筒規格 |
N:無電鍍 K:無電解鎳磷鍍 |
||||||
| FR惰輪 | |||||||
品種・尺寸一覽表
適用鏈號和齒數（所有齒頂均已硬化）
| 鏈條 編號 |
齒數 | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | |
| RS35 | ● | ● | ● | ● | ● | ● | ● | ● | |||||||||
| RS40 | ● | ● | ● | ● | ● | ● | ● | ||||||||||
| RS50 | ● | ● | ● | ● | ● | ● | |||||||||||
| RS60 | ● | ● | ● | ● | |||||||||||||
| RS80 | ● | ● | ● | ● | ● | ||||||||||||
| 鏈條 | 齒數 | 節距圓 直徑 DP mm |
外徑 Do mm |
齒寬 t mm |
型號、DXF圖形、3D CAD資料、PDF圖紙 | |||
|---|---|---|---|---|---|---|---|---|
| 滾珠軸承規格 | 無油套筒規格 | |||||||
| 無電鍍 | 無電解鎳磷鍍 | 無電鍍 | 無電解鎳磷鍍 | |||||
| RS35 | 18 | 54.85 | 60 | 4.4 | FRB-RS35-18TQ-N DXF・3DCAD・ PDF |
FRB-RS35-18TQ-K DXF・3DCAD・ PDF |
FRL-RS35-18TQ-N DXF・3DCAD・ PDF |
FRL-RS35-18TQ-K DXF・3DCAD・ PDF |
| 19 | 57.87 | 63 | FRB-RS35-19TQ-N DXF・3DCAD・ PDF |
FRB-RS35-19TQ-K DXF・3DCAD・ PDF |
FRL-RS35-19TQ-N DXF・3DCAD・ PDF |
FRL-RS35-19TQ-K DXF・3DCAD・ PDF |
||
| 20 | 60.89 | 66 | FRB-RS35-20TQ-N DXF・3DCAD・ PDF |
FRB-RS35-20TQ-K DXF・3DCAD・ PDF |
FRL-RS35-20TQ-N DXF・3DCAD・ PDF |
FRL-RS35-20TQ-K DXF・3DCAD・ PDF |
||
| 21 | 63.91 | 69 | FRB-RS35-21TQ-N DXF・3DCAD・ PDF |
FRB-RS35-21TQ-K DXF・3DCAD・ PDF |
FRL-RS35-21TQ-N DXF・3DCAD・ PDF |
FRL-RS35-21TQ-K DXF・3DCAD・ PDF |
||
| 22 | 66.93 | 72 | FRB-RS35-22TQ-N DXF・3DCAD・ PDF |
FRB-RS35-22TQ-K DXF・3DCAD・ PDF |
FRL-RS35-22TQ-N DXF・3DCAD・ PDF |
FRL-RS35-22TQ-K DXF・3DCAD・ PDF |
||
| 23 | 69.95 | 75 | FRB-RS35-23TQ-N DXF・3DCAD・ PDF |
FRB-RS35-23TQ-K DXF・3DCAD・ PDF |
FRL-RS35-23TQ-N DXF・3DCAD・ PDF |
FRL-RS35-23TQ-K DXF・3DCAD・ PDF |
||
| 24 | 72.97 | 78 | FRB-RS35-24TQ-N DXF・3DCAD・ PDF |
FRB-RS35-24TQ-K DXF・3DCAD・ PDF |
FRL-RS35-24TQ-N DXF・3DCAD・ PDF |
FRL-RS35-24TQ-K DXF・3DCAD・ PDF |
||
| 25 | 76.00 | 81 | FRB-RS35-25TQ-N DXF・3DCAD・ PDF |
FRB-RS35-25TQ-K DXF・3DCAD・ PDF |
FRL-RS35-25TQ-N DXF・3DCAD・ PDF |
FRL-RS35-25TQ-K DXF・3DCAD・ PDF |
||
| RS40 | 14 | 57.07 | 63 | 7.3 | FRB-RS40-14TQ-N DXF・3DCAD・ PDF |
FRB-RS40-14TQ-K DXF・3DCAD・ PDF |
FRL-RS40-14TQ-N DXF・3DCAD・ PDF |
FRL-RS40-14TQ-K DXF・3DCAD・ PDF |
| 15 | 61.08 | 67 | FRB-RS40-15TQ-N DXF・3DCAD・ PDF |
FRB-RS40-15TQ-K DXF・3DCAD・ PDF |
FRL-RS40-15TQ-N DXF・3DCAD・ PDF |
FRL-RS40-15TQ-K DXF・3DCAD・ PDF |
||
| 16 | 65.10 | 71 | FRB-RS40-16TQ-N DXF・3DCAD・ PDF |
FRB-RS40-16TQ-K DXF・3DCAD・ PDF |
FRL-RS40-16TQ-N DXF・3DCAD・ PDF |
FRL-RS40-16TQ-K DXF・3DCAD・ PDF |
||
| 17 | 69.12 | 75 | FRB-RS40-17TQ-N DXF・3DCAD・ PDF |
FRB-RS40-17TQ-K DXF・3DCAD・ PDF |
FRL-RS40-17TQ-N DXF・3DCAD・ PDF |
FRL-RS40-17TQ-K DXF・3DCAD・ PDF |
||
| 18 | 73.14 | 78 | FRB-RS40-18TQ-N DXF・3DCAD・ PDF |
FRB-RS40-18TQ-K DXF・3DCAD・ PDF |
FRL-RS40-18TQ-N DXF・3DCAD・ PDF |
FRL-RS40-18TQ-K DXF・3DCAD・ PDF |
||
| 19 | 77.16 | 83 | FRB-RS40-19TQ-N DXF・3DCAD・ PDF |
FRB-RS40-19TQ-K DXF・3DCAD・ PDF |
FRL-RS40-19TQ-N DXF・3DCAD・ PDF |
FRL-RS40-19TQ-K DXF・3DCAD・ PDF |
||
| 20 | 81.18 | 88 | FRB-RS40-20TQ-N DXF・3DCAD・ PDF |
FRB-RS40-20TQ-K DXF・3DCAD・ PDF |
FRL-RS40-20TQ-N DXF・3DCAD・ PDF |
FRL-RS40-20TQ-K DXF・3DCAD・ PDF |
||
| RS50 | 12 | 61.34 | 68 | 8.9 | FRB-RS50-12TQ-N DXF・3DCAD・ PDF |
FRB-RS50-12TQ-K DXF・3DCAD・ PDF |
FRL-RS50-12TQ-N DXF・3DCAD・ PDF |
FRL-RS50-12TQ-K DXF・3DCAD・ PDF |
| 13 | 66.33 | 73 | FRB-RS50-13TQ-N DXF・3DCAD・ PDF |
FRB-RS50-13TQ-K DXF・3DCAD・ PDF |
FRL-RS50-13TQ-N DXF・3DCAD・ PDF |
FRL-RS50-13TQ-K DXF・3DCAD・ PDF |
||
| 14 | 71.34 | 79 | FRB-RS50-14TQ-N DXF・3DCAD・ PDF |
FRB-RS50-14TQ-K DXF・3DCAD・ PDF |
FRL-RS50-14TQ-N DXF・3DCAD・ PDF |
FRL-RS50-14TQ-K DXF・3DCAD・ PDF |
||
| 15 | 76.35 | 84 | FRB-RS50-15TQ-N DXF・3DCAD・ PDF |
FRB-RS50-15TQ-K DXF・3DCAD・ PDF |
FRL-RS50-15TQ-N DXF・3DCAD・ PDF |
FRL-RS50-15TQ-K DXF・3DCAD・ PDF |
||
| 16 | 81.37 | 89 | FRB-RS50-16TQ-N DXF・3DCAD・ PDF |
FRB-RS50-16TQ-K DXF・3DCAD・ PDF |
FRL-RS50-16TQ-N DXF・3DCAD・ PDF |
FRL-RS50-16TQ-K DXF・3DCAD・ PDF |
||
| 17 | 86.39 | 94 | FRB-RS50-17TQ-N DXF・3DCAD・ PDF |
FRB-RS50-17TQ-K DXF・3DCAD・ PDF |
FRL-RS50-17TQ-N DXF・3DCAD・ PDF |
FRL-RS50-17TQ-K DXF・3DCAD・ PDF |
||
| RS60 | 11 | 67.62 | 76 | 11.9 | FRB-RS60-11TQ-N DXF・3DCAD・ PDF |
FRB-RS60-11TQ-K DXF・3DCAD・ PDF |
FRL-RS60-11TQ-N DXF・3DCAD・ PDF |
FRL-RS60-11TQ-K DXF・3DCAD・ PDF |
| 12 | 73.60 | 82 | FRB-RS60-12TQ-N DXF・3DCAD・ PDF |
FRB-RS60-12TQ-K DXF・3DCAD・ PDF |
FRL-RS60-12TQ-N DXF・3DCAD・ PDF |
FRL-RS60-12TQ-K DXF・3DCAD・ PDF |
||
| 13 | 79.60 | 89 | FRB-RS60-13TQ-N DXF・3DCAD・ PDF |
FRB-RS60-13TQ-K DXF・3DCAD・ PDF |
FRL-RS60-13TQ-N DXF・3DCAD・ PDF |
FRL-RS60-13TQ-K DXF・3DCAD・ PDF |
||
| 14 | 85.61 | 95 | FRB-RS60-14TQ-N DXF・3DCAD・ PDF |
FRB-RS60-14TQ-K DXF・3DCAD・ PDF |
FRL-RS60-14TQ-N DXF・3DCAD・ PDF |
FRL-RS60-14TQ-K DXF・3DCAD・ PDF |
||
| RS80 | 9 | 74.26 | 85 | 15.0 | FRB-RS80-9TQ-N DXF・3DCAD・ PDF |
FRB-RS80-9TQ-K DXF・3DCAD・ PDF |
FRL-RS80-9TQ-N DXF・3DCAD・ PDF |
FRL-RS80-9TQ-K DXF・3DCAD・ PDF |
| 10 | 82.20 | 93 | FRB-RS80-10TQ-N DXF・3DCAD・ PDF |
FRB-RS80-10TQ-K DXF・3DCAD・ PDF |
FRL-RS80-10TQ-N DXF・3DCAD・ PDF |
FRL-RS80-10TQ-K DXF・3DCAD・ PDF |
||
| 11 | 90.16 | 101 | FRB-RS80-11TQ-N DXF・3DCAD・ PDF |
FRB-RS80-11TQ-K DXF・3DCAD・ PDF |
FRL-RS80-11TQ-N DXF・3DCAD・ PDF |
FRL-RS80-11TQ-K DXF・3DCAD・ PDF |
||
| 12 | 98.14 | 108 | FRB-RS80-12TQ-N DXF・3DCAD・ PDF |
FRB-RS80-12TQ-K DXF・3DCAD・ PDF |
FRL-RS80-12TQ-N DXF・3DCAD・ PDF |
FRL-RS80-12TQ-K DXF・3DCAD・ PDF |
||
| 13 | 106.14 | 118 | FRB-RS80-13TQ-N DXF・3DCAD・ PDF |
FRB-RS80-13TQ-K DXF・3DCAD・ PDF |
FRL-RS80-13TQ-N DXF・3DCAD・ PDF |
FRL-RS80-13TQ-K DXF・3DCAD・ PDF |
||
所有品種都是按訂單生產品的產品。
選項-空閒螺栓集-
空心螺栓配套品種
| 型號 | 尺寸 | L (mm) |
|---|---|---|
| FR-PS45 | M12 | 45 |
| FR-PS55 | 55 | |
| FR-PS70 | 70 |

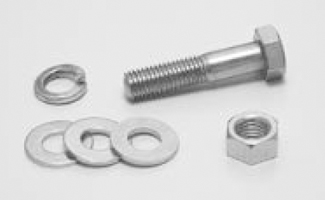

附件
- ·1個螺栓，1個螺母，3個平墊圈
- ·彈簧墊圈1個 (表面處理:三價鉻酸鹽)
滑塊螺栓安裝示例 (滾珠軸承規格)
