耐環境大型輸送鏈　GSA規格

製品写真
  • 這是比GS規格更高的規格，具有更高的耐磨性和最大容許張力。
  • 與GS規格相比，套筒與滾輪之間的耐磨性提高了一倍，銷與套筒之間的耐磨性提高了 1.5 倍，R 滾子和 F 滾子的最大容許張力和允許載荷提高了 1.3 倍。
  • 環境溫度：-20°C* 至 200°C
  • ※在-20°C以下使用時，請向本公司咨詢。

特性

與 GS規格相比，GSA規格提高了耐磨性和最大容許張力。

  • ·銷軸與套筒間的耐磨性能1.5倍

    銷-軸套間耐磨性能 (內部實驗比)

    ピン～ブシュ間の耐摩耗性能1.5倍

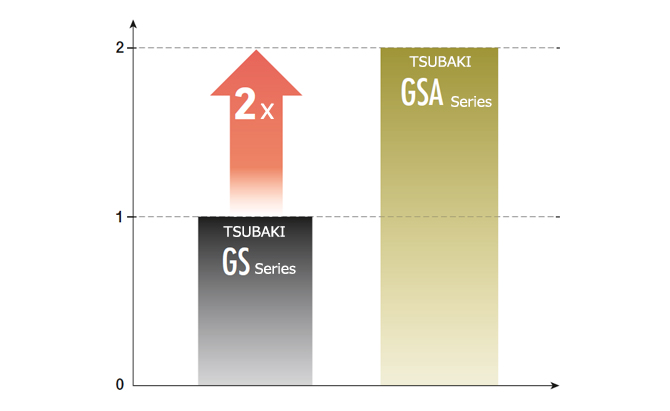

  • ·套筒與滾子間的耐磨性能2倍

    套筒~滾子間耐磨性能 (公司內部實驗比)

    ブシュ～ローラ間の耐摩耗性能2倍

  • -最大容許張力，R滾子，F滾子允許負載 1.3 倍

    最大容許張力比較（與內部實驗結果比較）

    最大許容張力、Rローラ、Fローラ許容負荷1.3倍

產品目錄、使用說明書

商品一覽表

※單擊查看詳細信息

*最大容許張力是根據我們的設計標準計算得出的值，即計算強度。除非另有規定，否則在選擇大型输送鏈條時應使用最大容許張力。
該數值因製造商而異，並非保證值。

※平均拉伸強度請咨詢本公司。

米製節距

尺寸 滾子
類型		 節距 滾子
外徑		 內鏈節
內寬
75mm 100mm 125mm 150mm 200mm 250mm 300mm 450mm Φmm mm
RF03 R RF03075R-GSA RF03100R-GSA --- --- --- --- --- --- 31.8 16.1
F RF03075F-GSA RF03100F-GSA --- --- --- --- --- --- 31.8
S RF03075S-GSA RF03100S-GSA --- --- --- --- --- --- 15.9
RF05 R --- RF05100R-GSA RF05125R-GSA RF05150R-GSA --- --- --- --- 40 22
F --- RF05100F-GSA RF05125F-GSA RF05150F-GSA --- --- --- --- 40
S RF05075S-GSA RF05100S-GSA RF05125S-GSA RF05150S-GSA --- --- --- --- 22.2
RF08 R --- --- RF08125R-GSA RF08150R-GSA --- --- --- --- 44.5 27
F --- --- RF08125F-GSA RF08150F-GSA --- --- --- --- 44.5
S --- --- RF08125S-GSA RF08150S-GSA --- --- --- --- 22.2
RF10 R --- RF10100R-GSA RF10125R-GSA RF10150R-GSA --- --- --- --- 50.8 30
F --- --- RF10125F-GSA RF10150F-GSA --- --- --- --- 50.8
S --- RF10100S-GSA RF10125S-GSA RF10150S-GSA --- --- --- --- 29
M --- RF10100M-GSA RF10125M-GSA RF10150M-GSA --- --- --- --- 31.8
RF12 R --- --- --- --- RF12200R-GSA RF12250R-GSA --- --- 65 37.1
F --- --- --- --- RF12200F-GSA RF12250F-GSA --- --- 65
S --- --- --- --- RF12200S-GSA RF12250S-GSA --- --- 34.9
M --- --- --- --- RF12200M-GSA RF12250M-GSA --- --- 38.1
RF17 R --- --- --- --- RF17200R-GSA RF17250R-GSA RF17300R-GSA --- 80 51.4
F --- --- --- --- RF17200F-GSA RF17250F-GSA RF17300F-GSA --- 80
S --- --- --- --- RF17200S-GSA RF17250S-GSA RF17300S-GSA --- 40.1
M --- --- --- --- RF17200M-GSA RF17250M-GSA RF17300M-GSA --- 44.5
RF26 R --- --- --- --- --- RF26250R-GSA RF26300R-GSA RF26450R-GSA 100 57.2
F --- --- --- --- --- RF26250F-GSA RF26300F-GSA RF26450F-GSA 100
S --- --- --- --- RF26200S-GSA RF26250S-GSA RF26300S-GSA RF26450S-GSA 44.5
M --- --- --- --- RF26200M-GSA RF26250M-GSA RF26300M-GSA RF26450M-GSA 50.8
※上述間距以外的部分也可制作。請咨詢。
※英制間距為特型對應品。請咨詢。 返回本頁頂部
