軸承滾子輸送鏈條 免加油耐水仕様
- 透過在滾筒內部交替使用不鏽鋼滾筒和特殊的圓筒滾柱，無需額外潤滑，並且可以在潮濕的環境中使用。
- 有WEBR、WEBF兩種滾子形式。
- 工作溫度範圍:0°C至50°C
產品目錄、使用說明書
結構和特性
-

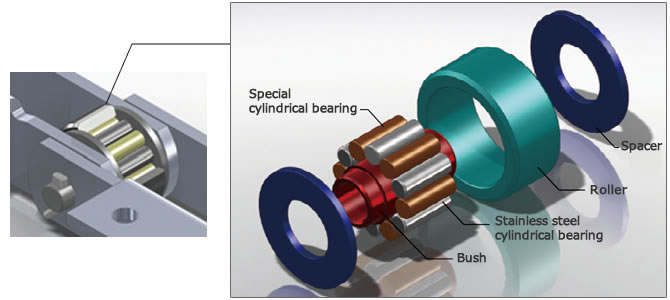

·軸承滾子結構圖
-
·套筒與滾子間的磨損壽命比較
※本公司實驗比 (無追加加油)
無需額外潤滑，GS規格輸送鏈的使用壽命是普通輸送鏈的兩倍
滾子形狀
| WEBR款 | WEBF款 |
|---|---|
|
|
商品一覽表
※單擊查看詳細信息
*最大容許張力是根據我們的設計標準計算得出的值，即計算強度。除非另有規定，否則在選擇大型输送鏈條時應使用最大容許張力。
該數值因製造商而異，並非保證值。
※平均拉伸強度請咨詢本公司。
| 尺寸 | 滾子 類型 |
節距 | 滾子 外徑 |
內鏈節 內寬 |
||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 75mm | 100mm | 125mm | 150mm | 200mm | 250mm | 300mm | Φmm | mm | ||
| RF03 | WEBR | RF03075WEBR | RF03100WEBR | --- | --- | --- | --- | --- | 31.8 | 16.1 |
| WEBF | RF03075WEBF | RF03100WEBF | --- | --- | --- | --- | --- | 31.8 | ||
| RF05 | WEBR | --- | RF05100WEBR | RF05125WEBR | RF05150WEBR | --- | --- | --- | 40 | 22 |
| WEBF | --- | RF05100WEBF | RF05125WEBF | RF05150WEBF | --- | --- | --- | 40 | ||
| RF08 | WEBR | --- | --- | RF08125WEBR | RF08150WEBR | --- | --- | --- | 44.5 | 27 |
| WEBF | --- | --- | RF08125WEBF | RF08150WEBF | --- | --- | --- | 44.5 | ||
| RF10 | WEBR | --- | RF10100WEBR | RF10125WEBR | RF10150WEBR | --- | --- | --- | 50.8 | 30 |
| WEBF | --- | --- | RF10125WEBF | RF10150WEBF | --- | --- | --- | 50.8 | ||
| RF12 | WEBR | --- | --- | --- | --- | RF12200WEBR | RF12250WEBR | --- | 65 | 37.1 |
| WEBF | --- | --- | --- | --- | RF12200WEBF | RF12250WEBF | --- | 65 | ||
| RF17 | WEBR | --- | --- | --- | --- | RF17200WEBR | RF17250WEBR | RF17300WEBR | 80 | 51.4 |
| WEBF | --- | --- | --- | --- | RF17200WEBF | RF17250WEBF | RF17300WEBF | 80 | ||
| RF26 | WEBR | --- | --- | --- | --- | --- | RF26250WEBR | RF26300WEBR | 100 | 57.2 |
| WEBF | --- | --- | --- | --- | --- | RF26250WEBF | RF26300WEBF | 100 | ||
| RF36 | WEBR | --- | --- | --- | --- | --- | --- | RF36300WEBR | 125 | 66.7 |
| WEBF | --- | --- | --- | --- | --- | --- | RF36300WEBF | 125 | ||
※英制間距為特型對應品。請咨詢。 返回本頁頂部
