MD齒輪箱

產品圖片

高性能、高效率通用型直交軸螺旋傘齒輪齒輪箱。
這是一款從發售以來歷經半個世紀，在各種用途上都非常活躍的長款產品。
憑借豐富的業績和經驗，各個領域的客戶在可靠性方面都給予了很高的評價。
採用螺旋傘齒輪，可實現高傳動比和高效率。

特性

·豐富的規格系列

從豐富的機型中選擇最合適的一款。

為滿足所有市場需求，還支持各種特殊規格。
·高品質

採用符合AGMA規格的高精度螺旋錐齒輪，實現了高效率、高傳動能力。
·也可使用食品潤滑油

也支持封入NSF認定H1等級食品潤滑油的型號。

外形尺寸與標準規格相同。

※詳情請咨詢本公司。

標準機型

機型	ED2M, ED4M (B) ~25M (B) (10個尺寸)
安裝	Y, T, K1, K2, K3, K4
速比	1/1(M), 1/1.5～1/3(B)
輸入功率	0.014～335kW

結構（一級減速）

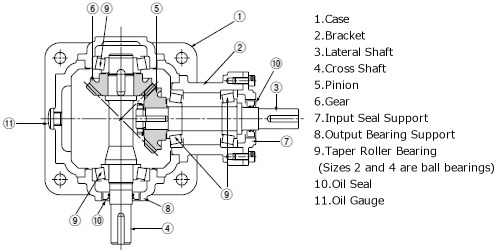

※尺寸2、4沒有油尺。

產品目錄、使用說明書

型號表示例

ED	10	M	-	1-LR-O	-	Y
\| 系列	\| 尺寸	\| 速比		\| 軸配置・旋轉關係		\| 安裝形式
		M=1：1 B15=1.5：1 B20=2：1 B25=2.5：1 B30=3：1		*請參閱下面的鏈節		(Y、T、K1至K4) *請參照以下鏈節

軸配置和旋轉關係圖

安裝形式、各插頭的位置

■椿本型號導航

*要生成正確的格式編號，請按從左到右的順序選擇項目。

系列	尺寸	速比	軸對齊與旋轉關係	安裝形式
ED		M(1：1) B15(1.5：1) B20(2：1) B25(2.5：1) B30(3：1)	了解詳情橫向單軸型橫向雙軸型	了解詳情 Y:安裝地板 (尺寸2、尺寸4為可自由選擇安裝方向) T:天花板安裝 K1:牆安裝1 K2:牆壁安裝2 K3:牆安裝3 K4:牆壁安裝4

尺寸

表示變速箱的大小。

速比

表示橫軸與十字軸之間的速比。

軸對齊與旋轉關係

表示安裝面與橫軸、十字軸的位置關係、旋轉關係。

安裝形式

指定安裝方向。

商品一覽表

※單擊形狀編號以顯示詳細信息。全部開啟全部關閉

型號ED2M (安裝方向自由-僅安裝形式標記Y)

橫向單軸型	ED2M-1-LR-Y	ED2M-1-R-Y	ED2M-1-L-Y	ED2M-1-LR-O-Y	ED2M-1-R-O-Y	ED2M-1-L-O-Y
	ED2M-1-UD-Y	ED2M-1-U-Y	ED2M-1-D-Y	ED2M-1-UD-O-Y	ED2M-1-U-O-Y	ED2M-1-D-O-Y
	ED2M-U-LR-Y	ED2M-U-R-Y	ED2M-U-L-Y	ED2M-U-LR-O-Y	ED2M-U-R-O-Y	ED2M-U-L-O-Y
	ED2M-D-LR-Y	ED2M-D-R-Y	ED2M-D-L-Y	ED2M-D-LR-O-Y	ED2M-D-R-O-Y	ED2M-D-L-O-Y
橫向雙軸型	ED2M-1-1-UD-Y	ED2M-1-1-U-Y	ED2M-1-1-D-Y	ED2M-1-1-UD-O-Y	ED2M-1-1-U-O-Y	ED2M-1-1-D-O-Y
橫向雙軸型	ED2M-U-D-LR-Y	ED2M-U-D-R-Y	ED2M-U-D-L-Y	ED2M-U-D-LR-O-Y	ED2M-U-D-R-O-Y	ED2M-U-D-L-O-Y

返回此頁面的頂部

型號ED4M、ED4B20 (安裝方向自由-僅安裝形式標記Y)

橫向單軸型	ED4M-1-LR-Y ED4B20-1-LR-Y	ED4M-1-R-Y ED4B20-1-R-Y	ED4M-1-L-Y ED4B20-1-L-Y	ED4M-1-LR-O-Y ED4B20-1-LR-O-Y	ED4M-1-R-O-Y ED4B20-1-R-O-Y	ED4M-1-L-O-Y ED4B20-1-L-O-Y
	ED4M-1-UD-Y ED4B20-1-UD-Y	ED4M-1-U-Y ED4B20-1-U-Y	ED4M-1-D-Y ED4B20-1-D-Y	ED4M-1-UD-O-Y ED4B20-1-UD-O-Y	ED4M-1-U-O-Y ED4B20-1-U-O-Y	ED4M-1-D-O-Y ED4B20-1-D-O-Y
	ED4M-U-LR-Y ED4B20-U-LR-Y	ED4M-U-R-Y ED4B20-U-R-Y	ED4M-U-L-Y ED4B20-U-L-Y	ED4M-U-LR-O-Y ED4B20-U-LR-O-Y	ED4M-U-R-O-Y ED4B20-U-R-O-Y	ED4M-U-L-O-Y ED4B20-U-L-O-Y
	ED4M-D-LR-Y ED4B20-D-LR-Y	ED4M-D-R-Y ED4B20-D-R-Y	ED4M-D-L-Y ED4B20-D-L-Y	ED4M-D-LR-O-Y ED4B20-D-LR-O-Y	ED4M-D-R-O-Y ED4B20-D-R-O-Y	ED4M-D-L-O-Y ED4B20-D-L-O-Y
橫向雙軸型	ED4M-1-1-LR-Y ED4B20-1-1-LR-Y	ED4M-1-1-R-Y ED4B20-1-1-R-Y	ED4M-1-1-L-Y ED4B20-1-1-L-Y	ED4M-1-1-LR-O-Y ED4B20-1-1-LR-O-Y	ED4M-1-1-R-O-Y ED4B20-1-1-R-O-Y	ED4M-1-1-L-O-Y ED4B20-1-1-L-O-Y
	ED4M-1-1-UD-Y ED4B20-1-1-UD-Y	ED4M-1-1-U-Y ED4B20-1-1-U-Y	ED4M-1-1-D-Y ED4B20-1-1-D-Y	ED4M-1-1-UD-O-Y ED4B20-1-1-UD-O-Y	ED4M-1-1-U-O-Y ED4B20-1-1-U-O-Y	ED4M-1-1-D-O-Y ED4B20-1-1-D-O-Y
	ED4M-U-D-LR-Y ED4B20-U-D-LR-Y	ED4M-U-D-R-Y ED4B20-U-D-R-Y	ED4M-U-D-L-Y ED4B20-U-D-L-Y	ED4M-U-D-LR-O-Y ED4B20-U-D-LR-O-Y	ED4M-U-D-R-O-Y ED4B20-U-D-R-O-Y	ED4M-U-D-L-O-Y ED4B20-U-D-L-O-Y

返回此頁面的頂部

型號ED6M、ED6B15、ED6B20、ED6B25、ED6B30 (安裝型號:-Y,-T,-K1至K4)

橫向單軸型	請選擇安裝方式。 Y (地板安裝) T (天花板安裝) K1 (壁裝) K2 (壁裝) K3 (壁裝) K4 (壁裝)	ED6M-1-LR ED6B15-1-LR ED6B20-1-LR ED6B25-1-LR ED6B30-1-LR	ED6M-1-R ED6B15-1-R ED6B20-1-R ED6B25-1-R ED6B30-1-R	ED6M-1-L ED6B15-1-L ED6B20-1-L ED6B25-1-L ED6B30-1-L	ED6M-1-LR-O ED6B15-1-LR-O ED6B20-1-LR-O ED6B25-1-LR-O ED6B30-1-LR-O	ED6M-1-R-O ED6B15-1-R-O ED6B20-1-R-O ED6B25-1-R-O ED6B30-1-R-O	ED6M-1-L-O ED6B15-1-L-O ED6B20-1-L-O ED6B25-1-L-O ED6B30-1-L-O
		ED6M-1-UD ED6B15-1-UD ED6B20-1-UD ED6B25-1-UD ED6B30-1-UD	ED6M-1-U ED6B15-1-U ED6B20-1-U ED6B25-1-U ED6B30-1-U	ED6M-1-D ED6B15-1-D ED6B20-1-D ED6B25-1-D ED6B30-1-D	ED6M-1-UD-O ED6B15-1-UD-O ED6B20-1-UD-O ED6B25-1-UD-O ED6B30-1-UD-O	ED6M-1-U-O ED6B15-1-U-O ED6B20-1-U-O ED6B25-1-U-O ED6B30-1-U-O	ED6M-1-D-O ED6B15-1-D-O ED6B20-1-D-O ED6B25-1-D-O ED6B30-1-D-O
		ED6M-U-LR ED6B15-U-LR ED6B20-U-LR ED6B25-U-LR ED6B30-U-LR	ED6M-U-R ED6B15-U-R ED6B20-U-R ED6B25-U-R ED6B30-U-R	ED6M-U-L ED6B15-U-L ED6B20-U-L ED6B25-U-L ED6B30-U-L	ED6M-U-LR-O ED6B15-U-LR-O ED6B20-U-LR-O ED6B25-U-LR-O ED6B30-U-LR-O	ED6M-U-R-O ED6B15-U-R-O ED6B20-U-R-O ED6B25-U-R-O ED6B30-U-R-O	ED6M-U-L-O ED6B15-U-L-O ED6B20-U-L-O ED6B25-U-L-O ED6B30-U-L-O
		ED6M-D-LR ED6B15-D-LR ED6B20-D-LR ED6B25-D-LR ED6B30-D-LR	ED6M-D-R ED6B15-D-R ED6B20-D-R ED6B25-D-R ED6B30-D-R	ED6M-D-L ED6B15-D-L ED6B20-D-L ED6B25-D-L ED6B30-D-L	ED6M-D-LR-O ED6B15-D-LR-O ED6B20-D-LR-O ED6B25-D-LR-O ED6B30-D-LR-O	ED6M-D-R-O ED6B15-D-R-O ED6B20-D-R-O ED6B25-D-R-O ED6B30-D-R-O	ED6M-D-L-O ED6B15-D-L-O ED6B20-D-L-O ED6B25-D-L-O ED6B30-D-L-O
橫向雙軸型		ED6M-1-1-LR ED6B15-1-1-LR ED6B20-1-1-LR ED6B25-1-1-LR ED6B30-1-1-LR	ED6M-1-1-R ED6B15-1-1-R ED6B20-1-1-R ED6B25-1-1-R ED6B30-1-1-R	ED6M-1-1-L ED6B15-1-1-L ED6B20-1-1-L ED6B25-1-1-L ED6B30-1-1-L	ED6M-1-1-LR-O ED6B15-1-1-LR-O ED6B20-1-1-LR-O ED6B25-1-1-LR-O ED6B30-1-1-LR-O	ED6M-1-1-R-O ED6B15-1-1-R-O ED6B20-1-1-R-O ED6B25-1-1-R-O ED6B30-1-1-R-O	ED6M-1-1-L-O ED6B15-1-1-L-O ED6B20-1-1-L-O ED6B25-1-1-L-O ED6B30-1-1-L-O
		ED6M-1-1-UD ED6B15-1-1-UD ED6B20-1-1-UD ED6B25-1-1-UD ED6B30-1-1-UD	ED6M-1-1-U ED6B15-1-1-U ED6B20-1-1-U ED6B25-1-1-U ED6B30-1-1-U	ED6M-1-1-D ED6B15-1-1-D ED6B20-1-1-D ED6B25-1-1-D ED6B30-1-1-D	ED6M-1-1-UD-O ED6B15-1-1-UD-O ED6B20-1-1-UD-O ED6B25-1-1-UD-O ED6B30-1-1-UD-O	ED6M-1-1-U-O ED6B15-1-1-U-O ED6B20-1-1-U-O ED6B25-1-1-U-O ED6B30-1-1-U-O	ED6M-1-1-D-O ED6B15-1-1-D-O ED6B20-1-1-D-O ED6B25-1-1-D-O ED6B30-1-1-D-O
		ED6M-U-D-LR ED6B15-U-D-LR ED6B20-U-D-LR ED6B25-U-D-LR ED6B30-U-D-LR	ED6M-U-D-R ED6B15-U-D-R ED6B20-U-D-R ED6B25-U-D-R ED6B30-U-D-R	ED6M-U-D-L ED6B15-U-D-L ED6B20-U-D-L ED6B25-U-D-L ED6B30-U-D-L	ED6M-U-D-LR-O ED6B15-U-D-LR-O ED6B20-U-D-LR-O ED6B25-U-D-LR-O ED6B30-U-D-LR-O	ED6M-U-D-R-O ED6B15-U-D-R-O ED6B20-U-D-R-O ED6B25-U-D-R-O ED6B30-U-D-R-O	ED6M-U-D-L-O ED6B15-U-D-L-O ED6B20-U-D-L-O ED6B25-U-D-L-O ED6B30-U-D-L-O

返回此頁面的頂部

型號ED7M、ED7B15、ED7B20、ED7B25、ED7B30 (安裝型號:-Y,-T,-K1至K4)

橫向單軸型	請選擇安裝方式。 Y (地板安裝) T (天花板安裝) K1 (壁裝) K2 (壁裝) K3 (壁裝) K4 (壁裝)	ED7M-1-LR ED7B15-1-LR ED7B20-1-LR ED7B25-1-LR ED7B30-1-LR	ED7M-1-R ED7B15-1-R ED7B20-1-R ED7B25-1-R ED7B30-1-R	ED7M-1-L ED7B15-1-L ED7B20-1-L ED7B25-1-L ED7B30-1-L	ED7M-1-LR-O ED7B15-1-LR-O ED7B20-1-LR-O ED7B25-1-LR-O ED7B30-1-LR-O	ED7M-1-R-O ED7B15-1-R-O ED7B20-1-R-O ED7B25-1-R-O ED7B30-1-R-O	ED7M-1-L-O ED7B15-1-L-O ED7B20-1-L-O ED7B25-1-L-O ED7B30-1-L-O
		ED7M-1-UD ED7B15-1-UD ED7B20-1-UD ED7B25-1-UD ED7B30-1-UD	ED7M-1-U ED7B15-1-U ED7B20-1-U ED7B25-1-U ED7B30-1-U	ED7M-1-D ED7B15-1-D ED7B20-1-D ED7B25-1-D ED7B30-1-D	ED7M-1-UD-O ED7B15-1-UD-O ED7B20-1-UD-O ED7B25-1-UD-O ED7B30-1-UD-O	ED7M-1-U-O ED7B15-1-U-O ED7B20-1-U-O ED7B25-1-U-O ED7B30-1-U-O	ED7M-1-D-O ED7B15-1-D-O ED7B20-1-D-O ED7B25-1-D-O ED7B30-1-D-O
		ED7M-U-LR ED7B15-U-LR ED7B20-U-LR ED7B25-U-LR ED7B30-U-LR	ED7M-U-R ED7B15-U-R ED7B20-U-R ED7B25-U-R ED7B30-U-R	ED7M-U-L ED7B15-U-L ED7B20-U-L ED7B25-U-L ED7B30-U-L	ED7M-U-LR-O ED7B15-U-LR-O ED7B20-U-LR-O ED7B25-U-LR-O ED7B30-U-LR-O	ED7M-U-R-O ED7B15-U-R-O ED7B20-U-R-O ED7B25-U-R-O ED7B30-U-R-O	ED7M-U-L-O ED7B15-U-L-O ED7B20-U-L-O ED7B25-U-L-O ED7B30-U-L-O
		ED7M-D-LR ED7B15-D-LR ED7B20-D-LR ED7B25-D-LR ED7B30-D-LR	ED7M-D-R ED7B15-D-R ED7B20-D-R ED7B25-D-R ED7B30-D-R	ED7M-D-L ED7B15-D-L ED7B20-D-L ED7B25-D-L ED7B30-D-L	ED7M-D-LR-O ED7B15-D-LR-O ED7B20-D-LR-O ED7B25-D-LR-O ED7B30-D-LR-O	ED7M-D-R-O ED7B15-D-R-O ED7B20-D-R-O ED7B25-D-R-O ED7B30-D-R-O	ED7M-D-L-O ED7B15-D-L-O ED7B20-D-L-O ED7B25-D-L-O ED7B30-D-L-O
橫向雙軸型		ED7M-1-1-LR ED7B15-1-1-LR ED7B20-1-1-LR ED7B25-1-1-LR ED7B30-1-1-LR	ED7M-1-1-R ED7B15-1-1-R ED7B20-1-1-R ED7B25-1-1-R ED7B30-1-1-R	ED7M-1-1-L ED7B15-1-1-L ED7B20-1-1-L ED7B25-1-1-L ED7B30-1-1-L	ED7M-1-1-LR-O ED7B15-1-1-LR-O ED7B20-1-1-LR-O ED7B25-1-1-LR-O ED7B30-1-1-LR-O	ED7M-1-1-R-O ED7B15-1-1-R-O ED7B20-1-1-R-O ED7B25-1-1-R-O ED7B30-1-1-R-O	ED7M-1-1-L-O ED7B15-1-1-L-O ED7B20-1-1-L-O ED7B25-1-1-L-O ED7B30-1-1-L-O
		ED7M-1-1-UD ED7B15-1-1-UD ED7B20-1-1-UD ED7B25-1-1-UD ED7B30-1-1-UD	ED7M-1-1-U ED7B15-1-1-U ED7B20-1-1-U ED7B25-1-1-U ED7B30-1-1-U	ED7M-1-1-D ED7B15-1-1-D ED7B20-1-1-D ED7B25-1-1-D ED7B30-1-1-D	ED7M-1-1-UD-O ED7B15-1-1-UD-O ED7B20-1-1-UD-O ED7B25-1-1-UD-O ED7B30-1-1-UD-O	ED7M-1-1-U-O ED7B15-1-1-U-O ED7B20-1-1-U-O ED7B25-1-1-U-O ED7B30-1-1-U-O	ED7M-1-1-D-O ED7B15-1-1-D-O ED7B20-1-1-D-O ED7B25-1-1-D-O ED7B30-1-1-D-O
		ED7M-U-D-LR ED7B15-U-D-LR ED7B20-U-D-LR ED7B25-U-D-LR ED7B30-U-D-LR	ED7M-U-D-R ED7B15-U-D-R ED7B20-U-D-R ED7B25-U-D-R ED7B30-U-D-R	ED7M-U-D-L ED7B15-U-D-L ED7B20-U-D-L ED7B25-U-D-L ED7B30-U-D-L	ED7M-U-D-LR-O ED7B15-U-D-LR-O ED7B20-U-D-LR-O ED7B25-U-D-LR-O ED7B30-U-D-LR-O	ED7M-U-D-R-O ED7B15-U-D-R-O ED7B20-U-D-R-O ED7B25-U-D-R-O ED7B30-U-D-R-O	ED7M-U-D-L-O ED7B15-U-D-L-O ED7B20-U-D-L-O ED7B25-U-D-L-O ED7B30-U-D-L-O

返回此頁面的頂部

型號ED8M、ED8B15、ED8B20、ED8B25、ED8B30 (安裝型號:-Y,-T,-K1至K4)

橫向單軸型	請選擇安裝方式。 Y (地板安裝) T (天花板安裝) K1 (壁裝) K2 (壁裝) K3 (壁裝) K4 (壁裝)	ED8M-1-LR ED8B15-1-LR ED8B20-1-LR ED8B25-1-LR ED8B30-1-LR	ED8M-1-R ED8B15-1-R ED8B20-1-R ED8B25-1-R ED8B30-1-R	ED8M-1-L ED8B15-1-L ED8B20-1-L ED8B25-1-L ED8B30-1-L	ED8M-1-LR-O ED8B15-1-LR-O ED8B20-1-LR-O ED8B25-1-LR-O ED8B30-1-LR-O	ED8M-1-R-O ED8B15-1-R-O ED8B20-1-R-O ED8B25-1-R-O ED8B30-1-R-O	ED8M-1-L-O ED8B15-1-L-O ED8B20-1-L-O ED8B25-1-L-O ED8B30-1-L-O
		ED8M-1-UD ED8B15-1-UD ED8B20-1-UD ED8B25-1-UD ED8B30-1-UD	ED8M-1-U ED8B15-1-U ED8B20-1-U ED8B25-1-U ED8B30-1-U	ED8M-1-D ED8B15-1-D ED8B20-1-D ED8B25-1-D ED8B30-1-D	ED8M-1-UD-O ED8B15-1-UD-O ED8B20-1-UD-O ED8B25-1-UD-O ED8B30-1-UD-O	ED8M-1-U-O ED8B15-1-U-O ED8B20-1-U-O ED8B25-1-U-O ED8B30-1-U-O	ED8M-1-D-O ED8B15-1-D-O ED8B20-1-D-O ED8B25-1-D-O ED8B30-1-D-O
		ED8M-U-LR ED8B15-U-LR ED8B20-U-LR ED8B25-U-LR ED8B30-U-LR	ED8M-U-R ED8B15-U-R ED8B20-U-R ED8B25-U-R ED8B30-U-R	ED8M-U-L ED8B15-U-L ED8B20-U-L ED8B25-U-L ED8B30-U-L	ED8M-U-LR-O ED8B15-U-LR-O ED8B20-U-LR-O ED8B25-U-LR-O ED8B30-U-LR-O	ED8M-U-R-O ED8B15-U-R-O ED8B20-U-R-O ED8B25-U-R-O ED8B30-U-R-O	ED8M-U-L-O ED8B15-U-L-O ED8B20-U-L-O ED8B25-U-L-O ED8B30-U-L-O
		ED8M-D-LR ED8B15-D-LR ED8B20-D-LR ED8B25-D-LR ED8B30-D-LR	ED8M-D-R ED8B15-D-R ED8B20-D-R ED8B25-D-R ED8B30-D-R	ED8M-D-L ED8B15-D-L ED8B20-D-L ED8B25-D-L ED8B30-D-L	ED8M-D-LR-O ED8B15-D-LR-O ED8B20-D-LR-O ED8B25-D-LR-O ED8B30-D-LR-O	ED8M-D-R-O ED8B15-D-R-O ED8B20-D-R-O ED8B25-D-R-O ED8B30-D-R-O	ED8M-D-L-O ED8B15-D-L-O ED8B20-D-L-O ED8B25-D-L-O ED8B30-D-L-O
橫向雙軸型		ED8M-1-1-LR ED8B15-1-1-LR ED8B20-1-1-LR ED8B25-1-1-LR ED8B30-1-1-LR	ED8M-1-1-R ED8B15-1-1-R ED8B20-1-1-R ED8B25-1-1-R ED8B30-1-1-R	ED8M-1-1-L ED8B15-1-1-L ED8B20-1-1-L ED8B25-1-1-L ED8B30-1-1-L	ED8M-1-1-LR-O ED8B15-1-1-LR-O ED8B20-1-1-LR-O ED8B25-1-1-LR-O ED8B30-1-1-LR-O	ED8M-1-1-R-O ED8B15-1-1-R-O ED8B20-1-1-R-O ED8B25-1-1-R-O ED8B30-1-1-R-O	ED8M-1-1-L-O ED8B15-1-1-L-O ED8B20-1-1-L-O ED8B25-1-1-L-O ED8B30-1-1-L-O
		ED8M-1-1-UD ED8B15-1-1-UD ED8B20-1-1-UD ED8B25-1-1-UD ED8B30-1-1-UD	ED8M-1-1-U ED8B15-1-1-U ED8B20-1-1-U ED8B25-1-1-U ED8B30-1-1-U	ED8M-1-1-D ED8B15-1-1-D ED8B20-1-1-D ED8B25-1-1-D ED8B30-1-1-D	ED8M-1-1-UD-O ED8B15-1-1-UD-O ED8B20-1-1-UD-O ED8B25-1-1-UD-O ED8B30-1-1-UD-O	ED8M-1-1-U-O ED8B15-1-1-U-O ED8B20-1-1-U-O ED8B25-1-1-U-O ED8B30-1-1-U-O	ED8M-1-1-D-O ED8B15-1-1-D-O ED8B20-1-1-D-O ED8B25-1-1-D-O ED8B30-1-1-D-O
		ED8M-U-D-LR ED8B15-U-D-LR ED8B20-U-D-LR ED8B25-U-D-LR ED8B30-U-D-LR	ED8M-U-D-R ED8B15-U-D-R ED8B20-U-D-R ED8B25-U-D-R ED8B30-U-D-R	ED8M-U-D-L ED8B15-U-D-L ED8B20-U-D-L ED8B25-U-D-L ED8B30-U-D-L	ED8M-U-D-LR-O ED8B15-U-D-LR-O ED8B20-U-D-LR-O ED8B25-U-D-LR-O ED8B30-U-D-LR-O	ED8M-U-D-R-O ED8B15-U-D-R-O ED8B20-U-D-R-O ED8B25-U-D-R-O ED8B30-U-D-R-O	ED8M-U-D-L-O ED8B15-U-D-L-O ED8B20-U-D-L-O ED8B25-U-D-L-O ED8B30-U-D-L-O

返回此頁面的頂部

型號ED10M、ED10B15、ED10B20、ED10B25、ED10B30 (安裝型號:-Y,-T,-K1至K4)

橫向單軸型	請選擇安裝方式。 Y (地板安裝) T (天花板安裝) K1 (壁裝) K2 (壁裝) K3 (壁裝) K4 (壁裝)	ED10M-1-LR ED10B15-1-LR ED10B20-1-LR ED10B25-1-LR ED10B30-1-LR	ED10M-1-R ED10B15-1-R ED10B20-1-R ED10B25-1-R ED10B30-1-R	ED10M-1-L ED10B15-1-L ED10B20-1-L ED10B25-1-L ED10B30-1-L	ED10M-1-LR-O ED10B15-1-LR-O ED10B20-1-LR-O ED10B25-1-LR-O ED10B30-1-LR-O	ED10M-1-R-O ED10B15-1-R-O ED10B20-1-R-O ED10B25-1-R-O ED10B30-1-R-O	ED10M-1-L-O ED10B15-1-L-O ED10B20-1-L-O ED10B25-1-L-O ED10B30-1-L-O
		ED10M-1-UD ED10B15-1-UD ED10B20-1-UD ED10B25-1-UD ED10B30-1-UD	ED10M-1-U ED10B15-1-U ED10B20-1-U ED10B25-1-U ED10B30-1-U	ED10M-1-D ED10B15-1-D ED10B20-1-D ED10B25-1-D ED10B30-1-D	ED10M-1-UD-O ED10B15-1-UD-O ED10B20-1-UD-O ED10B25-1-UD-O ED10B30-1-UD-O	ED10M-1-U-O ED10B15-1-U-O ED10B20-1-U-O ED10B25-1-U-O ED10B30-1-U-O	ED10M-1-D-O ED10B15-1-D-O ED10B20-1-D-O ED10B25-1-D-O ED10B30-1-D-O
		ED10M-U-LR ED10B15-U-LR ED10B20-U-LR ED10B25-U-LR ED10B30-U-LR	ED10M-U-R ED10B15-U-R ED10B20-U-R ED10B25-U-R ED10B30-U-R	ED10M-U-L ED10B15-U-L ED10B20-U-L ED10B25-U-L ED10B30-U-L	ED10M-U-LR-O ED10B15-U-LR-O ED10B20-U-LR-O ED10B25-U-LR-O ED10B30-U-LR-O	ED10M-U-R-O ED10B15-U-R-O ED10B20-U-R-O ED10B25-U-R-O ED10B30-U-R-O	ED10M-U-L-O ED10B15-U-L-O ED10B20-U-L-O ED10B25-U-L-O ED10B30-U-L-O
		ED10M-D-LR ED10B15-D-LR ED10B20-D-LR ED10B25-D-LR ED10B30-D-LR	ED10M-D-R ED10B15-D-R ED10B20-D-R ED10B25-D-R ED10B30-D-R	ED10M-D-L ED10B15-D-L ED10B20-D-L ED10B25-D-L ED10B30-D-L	ED10M-D-LR-O ED10B15-D-LR-O ED10B20-D-LR-O ED10B25-D-LR-O ED10B30-D-LR-O	ED10M-D-R-O ED10B15-D-R-O ED10B20-D-R-O ED10B25-D-R-O ED10B30-D-R-O	ED10M-D-L-O ED10B15-D-L-O ED10B20-D-L-O ED10B25-D-L-O ED10B30-D-L-O
橫向雙軸型		ED10M-1-1-LR ED10B15-1-1-LR ED10B20-1-1-LR ED10B25-1-1-LR ED10B30-1-1-LR	ED10M-1-1-R ED10B15-1-1-R ED10B20-1-1-R ED10B25-1-1-R ED10B30-1-1-R	ED10M-1-1-L ED10B15-1-1-L ED10B20-1-1-L ED10B25-1-1-L ED10B30-1-1-L	ED10M-1-1-LR-O ED10B15-1-1-LR-O ED10B20-1-1-LR-O ED10B25-1-1-LR-O ED10B30-1-1-LR-O	ED10M-1-1-R-O ED10B15-1-1-R-O ED10B20-1-1-R-O ED10B25-1-1-R-O ED10B30-1-1-R-O	ED10M-1-1-L-O ED10B15-1-1-L-O ED10B20-1-1-L-O ED10B25-1-1-L-O ED10B30-1-1-L-O
		ED10M-1-1-UD ED10B15-1-1-UD ED10B20-1-1-UD ED10B25-1-1-UD ED10B30-1-1-UD	ED10M-1-1-U ED10B15-1-1-U ED10B20-1-1-U ED10B25-1-1-U ED10B30-1-1-U	ED10M-1-1-D ED10B15-1-1-D ED10B20-1-1-D ED10B25-1-1-D ED10B30-1-1-D	ED10M-1-1-UD-O ED10B15-1-1-UD-O ED10B20-1-1-UD-O ED10B25-1-1-UD-O ED10B30-1-1-UD-O	ED10M-1-1-U-O ED10B15-1-1-U-O ED10B20-1-1-U-O ED10B25-1-1-U-O ED10B30-1-1-U-O	ED10M-1-1-D-O ED10B15-1-1-D-O ED10B20-1-1-D-O ED10B25-1-1-D-O ED10B30-1-1-D-O
		ED10M-U-D-LR ED10B15-U-D-LR ED10B20-U-D-LR ED10B25-U-D-LR ED10B30-U-D-LR	ED10M-U-D-R ED10B15-U-D-R ED10B20-U-D-R ED10B25-U-D-R ED10B30-U-D-R	ED10M-U-D-L ED10B15-U-D-L ED10B20-U-D-L ED10B25-U-D-L ED10B30-U-D-L	ED10M-U-D-LR-O ED10B15-U-D-LR-O ED10B20-U-D-LR-O ED10B25-U-D-LR-O ED10B30-U-D-LR-O	ED10M-U-D-R-O ED10B15-U-D-R-O ED10B20-U-D-R-O ED10B25-U-D-R-O ED10B30-U-D-R-O	ED10M-U-D-L-O ED10B15-U-D-L-O ED10B20-U-D-L-O ED10B25-U-D-L-O ED10B30-U-D-L-O

返回此頁面的頂部

型號ED12M、ED12B15、ED12B20、ED12B25、ED12B30 (安裝型號:-Y,-T,-K1至K4)

橫向單軸型	請選擇安裝方式。 Y (地板安裝) T (天花板安裝) K1 (壁裝) K2 (壁裝) K3 (壁裝) K4 (壁裝)	ED12M-1-LR ED12B15-1-LR ED12B20-1-LR ED12B25-1-LR ED12B30-1-LR	ED12M-1-R ED12B15-1-R ED12B20-1-R ED12B25-1-R ED12B30-1-R	ED12M-1-L ED12B15-1-L ED12B20-1-L ED12B25-1-L ED12B30-1-L	ED12M-1-LR-O ED12B15-1-LR-O ED12B20-1-LR-O ED12B25-1-LR-O ED12B30-1-LR-O	ED12M-1-R-O ED12B15-1-R-O ED12B20-1-R-O ED12B25-1-R-O ED12B30-1-R-O	ED12M-1-L-O ED12B15-1-L-O ED12B20-1-L-O ED12B25-1-L-O ED12B30-1-L-O
		ED12M-1-UD ED12B15-1-UD ED12B20-1-UD ED12B25-1-UD ED12B30-1-UD	ED12M-1-U ED12B15-1-U ED12B20-1-U ED12B25-1-U ED12B30-1-U	ED12M-1-D ED12B15-1-D ED12B20-1-D ED12B25-1-D ED12B30-1-D	ED12M-1-UD-O ED12B15-1-UD-O ED12B20-1-UD-O ED12B25-1-UD-O ED12B30-1-UD-O	ED12M-1-U-O ED12B15-1-U-O ED12B20-1-U-O ED12B25-1-U-O ED12B30-1-U-O	ED12M-1-D-O ED12B15-1-D-O ED12B20-1-D-O ED12B25-1-D-O ED12B30-1-D-O
		ED12M-U-LR ED12B15-U-LR ED12B20-U-LR ED12B25-U-LR ED12B30-U-LR	ED12M-U-R ED12B15-U-R ED12B20-U-R ED12B25-U-R ED12B30-U-R	ED12M-U-L ED12B15-U-L ED12B20-U-L ED12B25-U-L ED12B30-U-L	ED12M-U-LR-O ED12B15-U-LR-O ED12B20-U-LR-O ED12B25-U-LR-O ED12B30-U-LR-O	ED12M-U-R-O ED12B15-U-R-O ED12B20-U-R-O ED12B25-U-R-O ED12B30-U-R-O	ED12M-U-L-O ED12B15-U-L-O ED12B20-U-L-O ED12B25-U-L-O ED12B30-U-L-O
		ED12M-D-LR ED12B15-D-LR ED12B20-D-LR ED12B25-D-LR ED12B30-D-LR	ED12M-D-R ED12B15-D-R ED12B20-D-R ED12B25-D-R ED12B30-D-R	ED12M-D-L ED12B15-D-L ED12B20-D-L ED12B25-D-L ED12B30-D-L	ED12M-D-LR-O ED12B15-D-LR-O ED12B20-D-LR-O ED12B25-D-LR-O ED12B30-D-LR-O	ED12M-D-R-O ED12B15-D-R-O ED12B20-D-R-O ED12B25-D-R-O ED12B30-D-R-O	ED12M-D-L-O ED12B15-D-L-O ED12B20-D-L-O ED12B25-D-L-O ED12B30-D-L-O
橫向雙軸型		ED12M-1-1-LR ED12B15-1-1-LR ED12B20-1-1-LR ED12B25-1-1-LR ED12B30-1-1-LR	ED12M-1-1-R ED12B15-1-1-R ED12B20-1-1-R ED12B25-1-1-R ED12B30-1-1-R	ED12M-1-1-L ED12B15-1-1-L ED12B20-1-1-L ED12B25-1-1-L ED12B30-1-1-L	ED12M-1-1-LR-O ED12B15-1-1-LR-O ED12B20-1-1-LR-O ED12B25-1-1-LR-O ED12B30-1-1-LR-O	ED12M-1-1-R-O ED12B15-1-1-R-O ED12B20-1-1-R-O ED12B25-1-1-R-O ED12B30-1-1-R-O	ED12M-1-1-L-O ED12B15-1-1-L-O ED12B20-1-1-L-O ED12B25-1-1-L-O ED12B30-1-1-L-O
		ED12M-1-1-UD ED12B15-1-1-UD ED12B20-1-1-UD ED12B25-1-1-UD ED12B30-1-1-UD	ED12M-1-1-U ED12B15-1-1-U ED12B20-1-1-U ED12B25-1-1-U ED12B30-1-1-U	ED12M-1-1-D ED12B15-1-1-D ED12B20-1-1-D ED12B25-1-1-D ED12B30-1-1-D	ED12M-1-1-UD-O ED12B15-1-1-UD-O ED12B20-1-1-UD-O ED12B25-1-1-UD-O ED12B30-1-1-UD-O	ED12M-1-1-U-O ED12B15-1-1-U-O ED12B20-1-1-U-O ED12B25-1-1-U-O ED12B30-1-1-U-O	ED12M-1-1-D-O ED12B15-1-1-D-O ED12B20-1-1-D-O ED12B25-1-1-D-O ED12B30-1-1-D-O
		ED12M-U-D-LR ED12B15-U-D-LR ED12B20-U-D-LR ED12B25-U-D-LR ED12B30-U-D-LR	ED12M-U-D-R ED12B15-U-D-R ED12B20-U-D-R ED12B25-U-D-R ED12B30-U-D-R	ED12M-U-D-L ED12B15-U-D-L ED12B20-U-D-L ED12B25-U-D-L ED12B30-U-D-L	ED12M-U-D-LR-O ED12B15-U-D-LR-O ED12B20-U-D-LR-O ED12B25-U-D-LR-O ED12B30-U-D-LR-O	ED12M-U-D-R-O ED12B15-U-D-R-O ED12B20-U-D-R-O ED12B25-U-D-R-O ED12B30-U-D-R-O	ED12M-U-D-L-O ED12B15-U-D-L-O ED12B20-U-D-L-O ED12B25-U-D-L-O ED12B30-U-D-L-O

返回此頁面的頂部

型號ED16M、ED16B20 (安裝型號:-Y,-T,-K1至K4)

橫向單軸型	請選擇安裝方式。 Y (地板安裝) T (天花板安裝) K1 (壁裝) K2 (壁裝) K3 (壁裝) K4 (壁裝)	ED16M-1-LR ED16B20-1-LR	ED16M-1-R ED16B20-1-R	ED16M-1-L ED16B20-1-L	ED16M-1-LR-O ED16B20-1-LR-O	ED16M-1-R-O ED16B20-1-R-O	ED16M-1-L-O ED16B20-1-L-O
		ED16M-1-UD ED16B20-1-UD	ED16M-1-U ED16B20-1-U	ED16M-1-D ED16B20-1-D	ED16M-1-UD-O ED16B20-1-UD-O	ED16M-1-U-O ED16B20-1-U-O	ED16M-1-D-O ED16B20-1-D-O
		ED16M-U-LR ED16B20-U-LR	ED16M-U-R ED16B20-U-R	ED16M-U-L ED16B20-U-L	ED16M-U-LR-O ED16B20-U-LR-O	ED16M-U-R-O ED16B20-U-R-O	ED16M-U-L-O ED16B20-U-L-O
		ED16M-D-LR ED16B20-D-LR	ED16M-D-R ED16B20-D-R	ED16M-D-L ED16B20-D-L	ED16M-D-LR-O ED16B20-D-LR-O	ED16M-D-R-O ED16B20-D-R-O	ED16M-D-L-O ED16B20-D-L-O

返回此頁面的頂部

型號ED20M、ED20B20 (安裝型號:-Y,-T,-K1至K4)

橫向單軸型	請選擇安裝方式。 Y (地板安裝) T (天花板安裝) K1 (壁裝) K2 (壁裝) K3 (壁裝) K4 (壁裝)	ED20M-1-LR ED20B20-1-LR	ED20M-1-R ED20B20-1-R	ED20M-1-L ED20B20-1-L	ED20M-1-LR-O ED20B20-1-LR-O	ED20M-1-R-O ED20B20-1-R-O	ED20M-1-L-O ED20B20-1-L-O
		ED20M-1-UD ED20B20-1-UD	ED20M-1-U ED20B20-1-U	ED20M-1-D ED20B20-1-D	ED20M-1-UD-O ED20B20-1-UD-O	ED20M-1-U-O ED20B20-1-U-O	ED20M-1-D-O ED20B20-1-D-O
		ED20M-U-LR ED20B20-U-LR	ED20M-U-R ED20B20-U-R	ED20M-U-L ED20B20-U-L	ED20M-U-LR-O ED20B20-U-LR-O	ED20M-U-R-O ED20B20-U-R-O	ED20M-U-L-O ED20B20-U-L-O
		ED20M-D-LR ED20B20-D-LR	ED20M-D-R ED20B20-D-R	ED20M-D-L ED20B20-D-L	ED20M-D-LR-O ED20B20-D-LR-O	ED20M-D-R-O ED20B20-D-R-O	ED20M-D-L-O ED20B20-D-L-O

返回此頁面的頂部

型號ED25M、ED25B20 (安裝型號:-Y,-T,-K1至K4)

橫向單軸型	請選擇安裝方式。 Y (地板安裝) T (天花板安裝) K1 (壁裝) K2 (壁裝) K3 (壁裝) K4 (壁裝)	ED25M-1-LR ED25B20-1-LR	ED25M-1-R ED25B20-1-R	ED25M-1-L ED25B20-1-L	ED25M-1-LR-O ED25B20-1-LR-O	ED25M-1-R-O ED25B20-1-R-O	ED25M-1-L-O ED25B20-1-L-O
		ED25M-1-UD ED25B20-1-UD	ED25M-1-U ED25B20-1-U	ED25M-1-D ED25B20-1-D	ED25M-1-UD-O ED25B20-1-UD-O	ED25M-1-U-O ED25B20-1-U-O	ED25M-1-D-O ED25B20-1-D-O
		ED25M-U-LR ED25B20-U-LR	ED25M-U-R ED25B20-U-R	ED25M-U-L ED25B20-U-L	ED25M-U-LR-O ED25B20-U-LR-O	ED25M-U-R-O ED25B20-U-R-O	ED25M-U-L-O ED25B20-U-L-O
		ED25M-D-LR ED25B20-D-LR	ED25M-D-R ED25B20-D-R	ED25M-D-L ED25B20-D-L	ED25M-D-LR-O ED25B20-D-LR-O	ED25M-D-R-O ED25B20-D-R-O	ED25M-D-L-O ED25B20-D-L-O

返回此頁面的頂部
