軸對齊與旋轉關係
| 橫向單軸型 | 橫向雙軸型 | |||||||
|---|---|---|---|---|---|---|---|---|
| 交叉2軸 款式 |

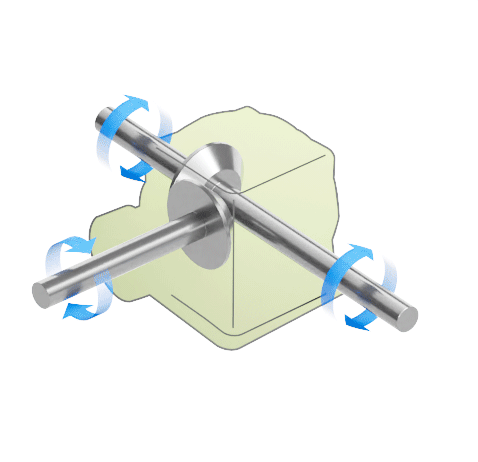

1-LR  |

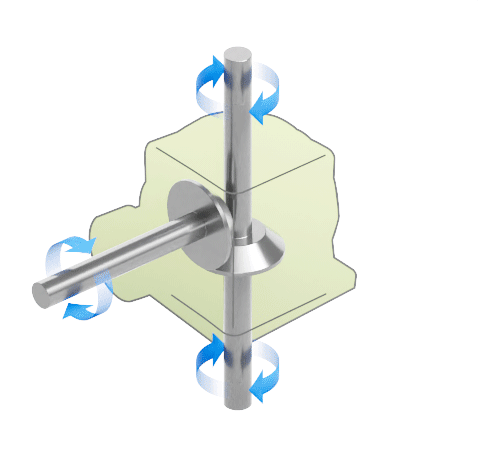

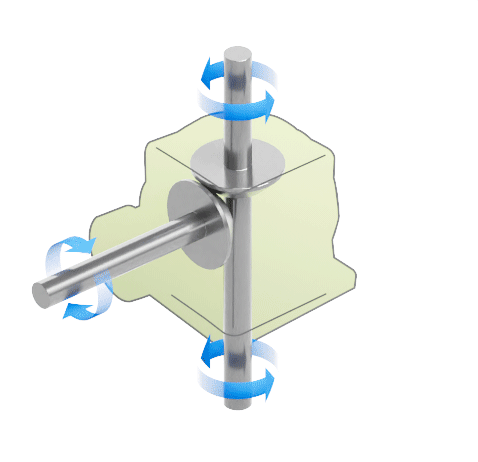

1-UD  |

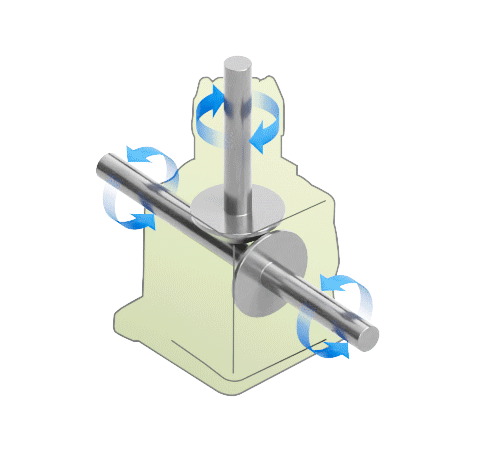

U-LR  |

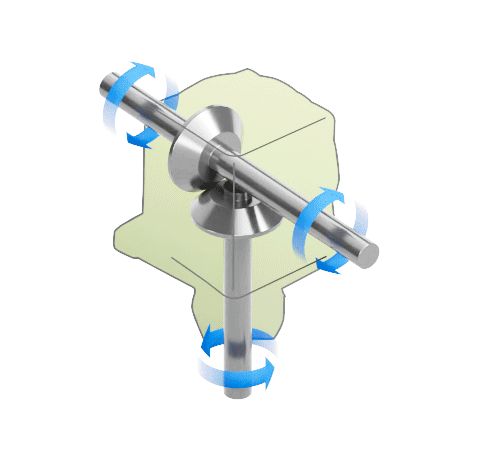

D-LR  |

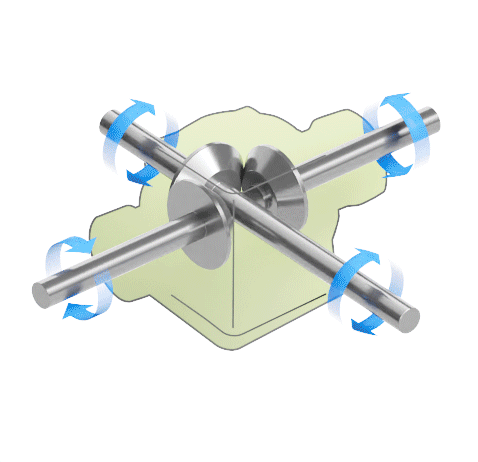

1-1-LR  |

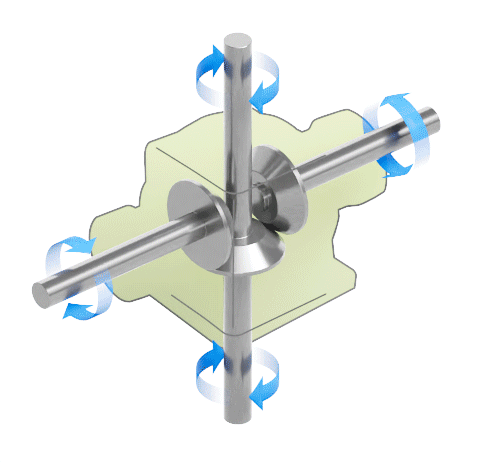

1-1-UD  |

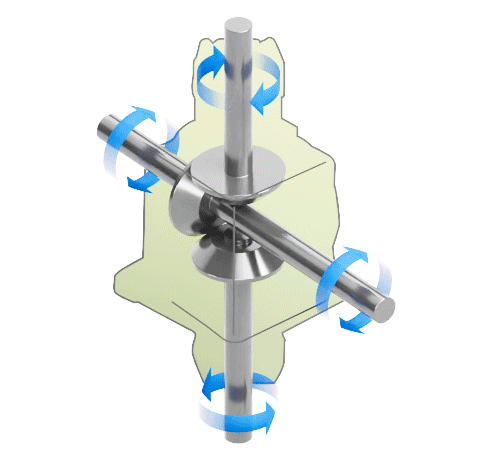

U-D-LR  |
|

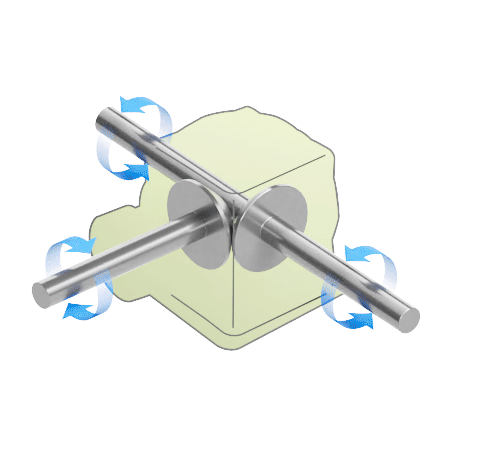

1-LR-O  |
1-UD-O  |
U-LR-O  |

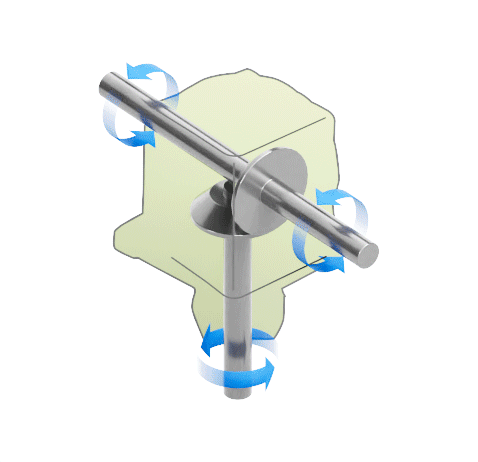

D-LR-O  |

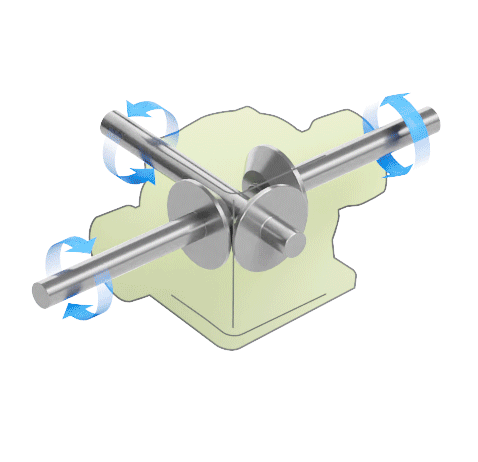

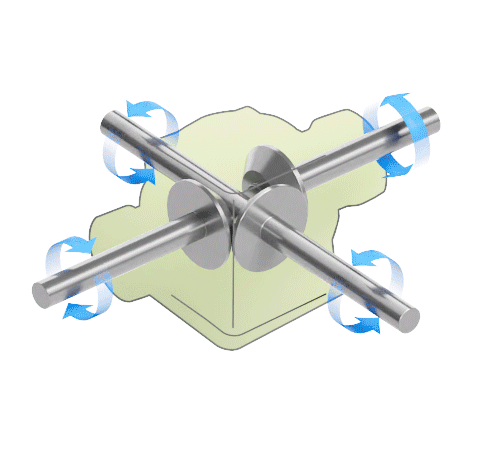

1-1-LR-O  |

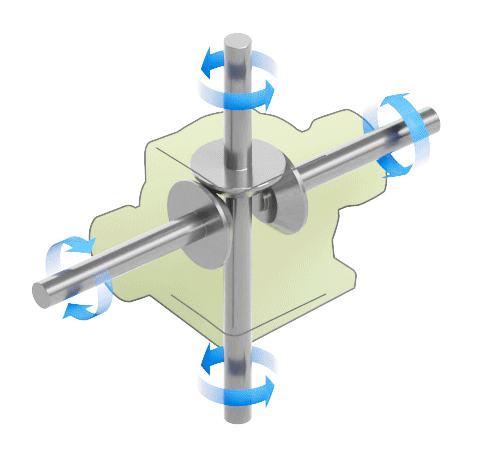

1-1-UD-O  |

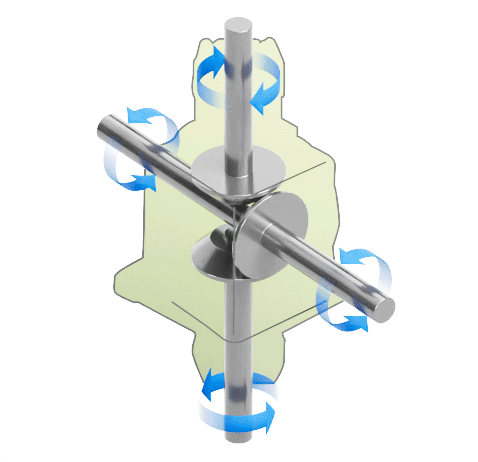

U-D-LR-O  |
||
| 交叉1軸 款式 |

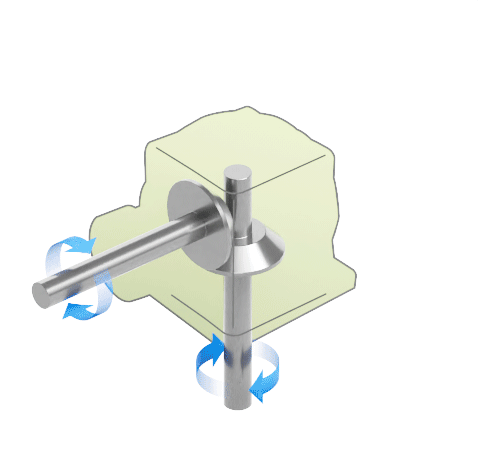

1-R  |

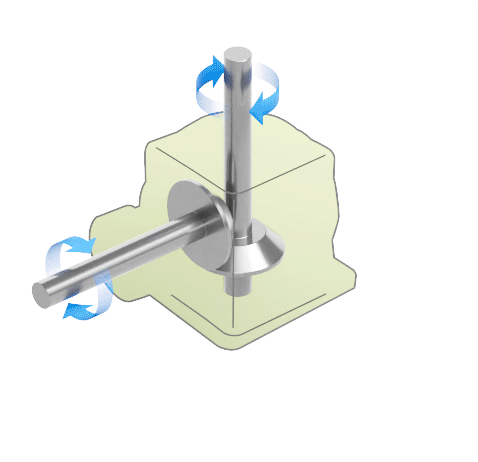

1-U  |

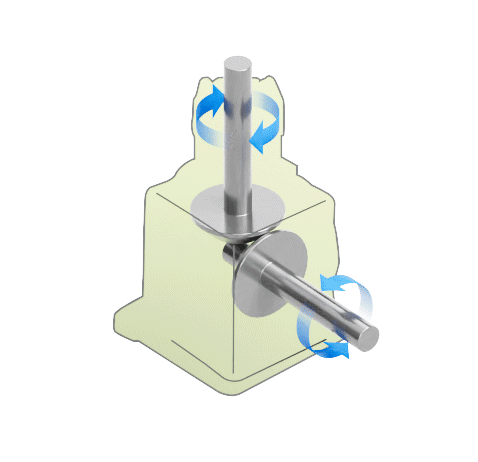

U-R  |

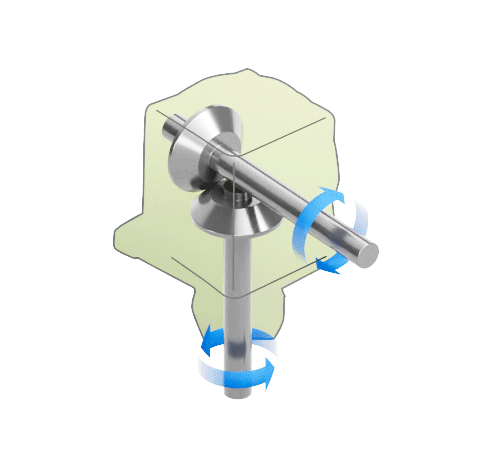

D-R  |

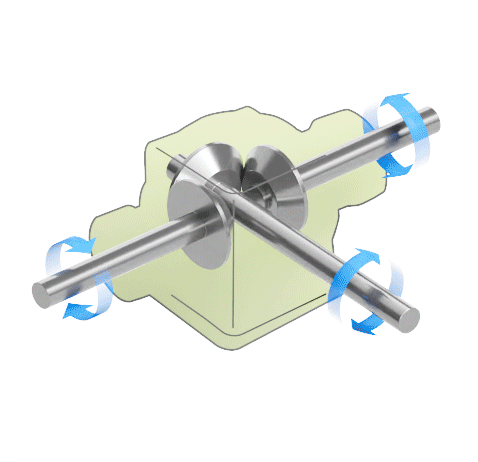

1-1-R  |

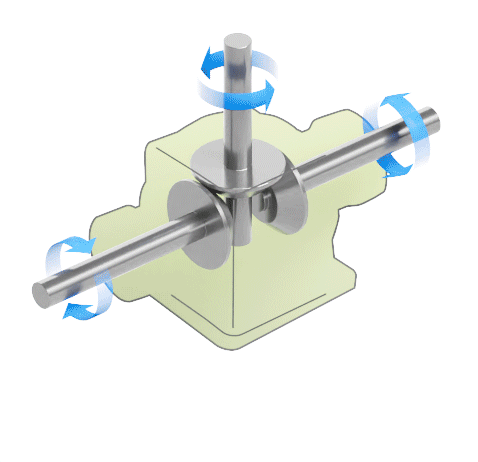

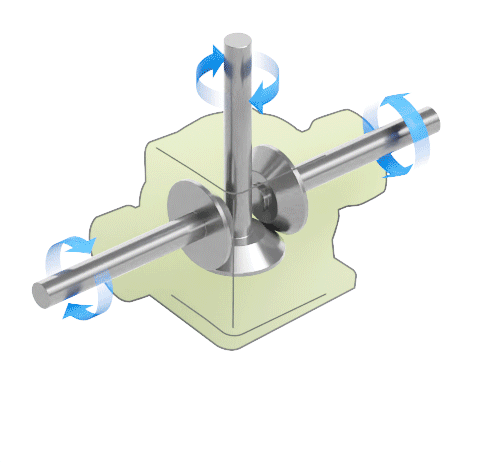

1-1-U  |

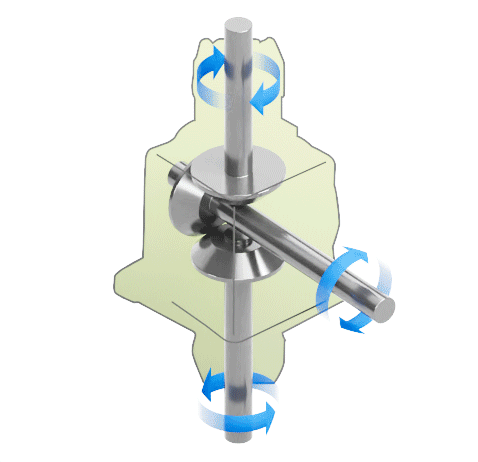

U-D-R  |
|

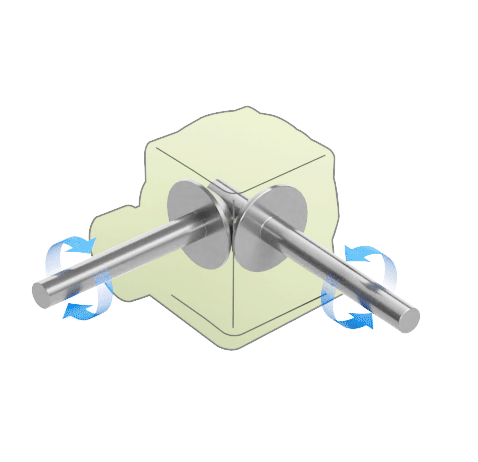

1-R-O  |

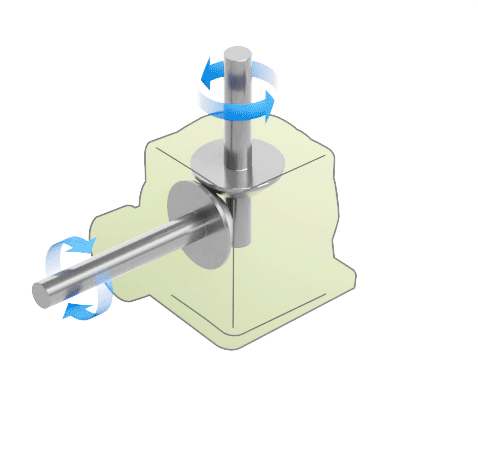

1-U-O  |

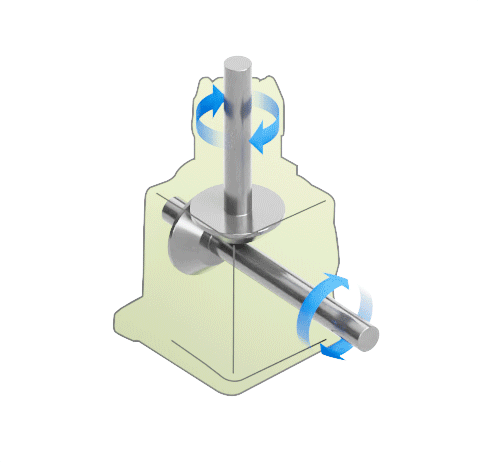

U-R-O  |

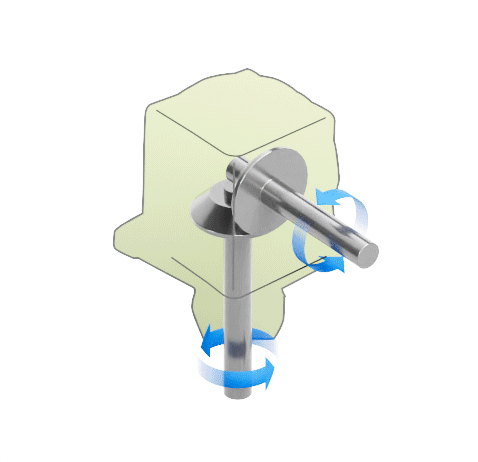

D-R-O  |

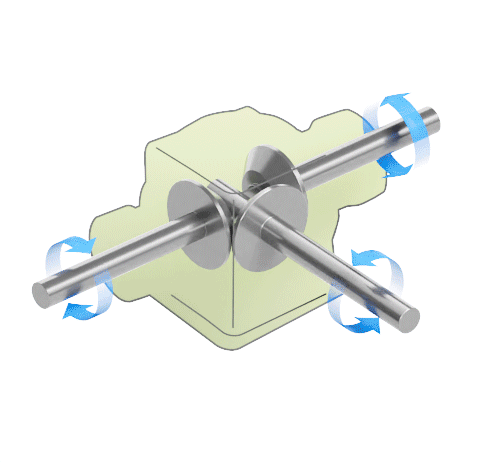

1-1-R-O  |
1-1-U-O  |

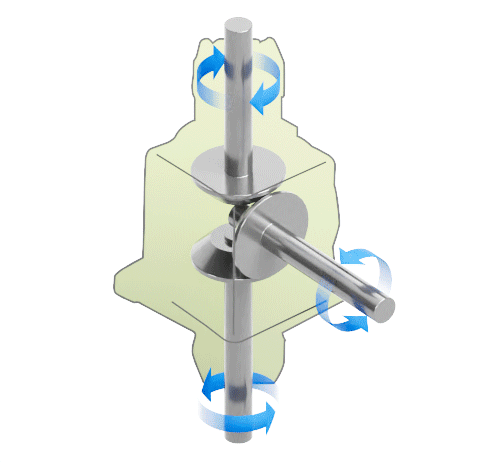

U-D-R-O  |
||

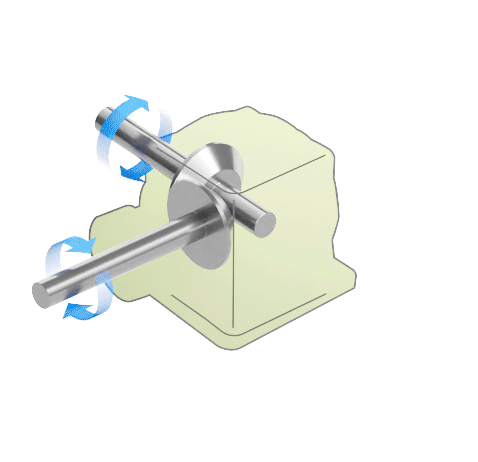

1-L  |
1-D  |

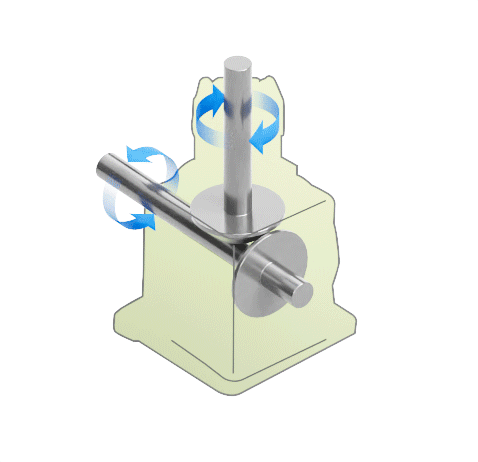

U-L  |

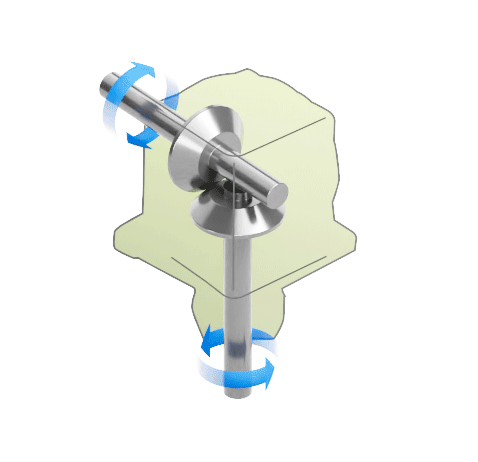

D-L  |

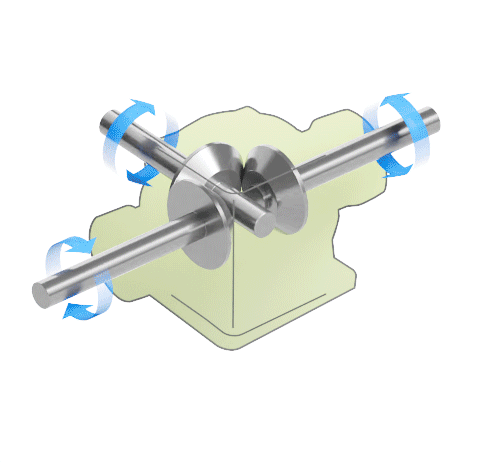

1-1-L  |

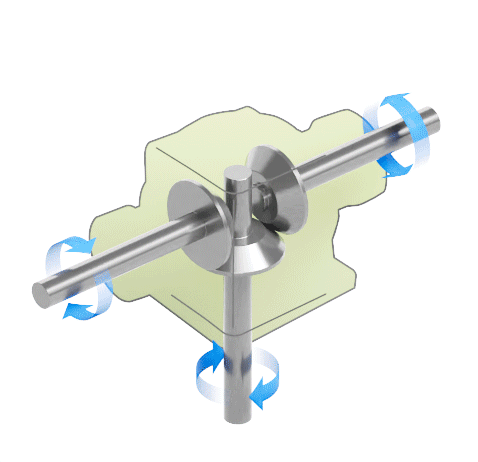

1-1-D  |

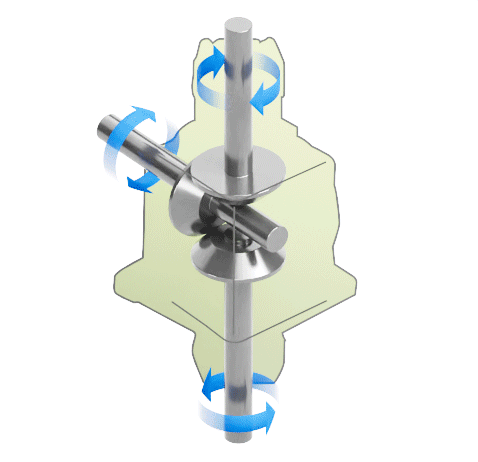

U-D-L  |
||

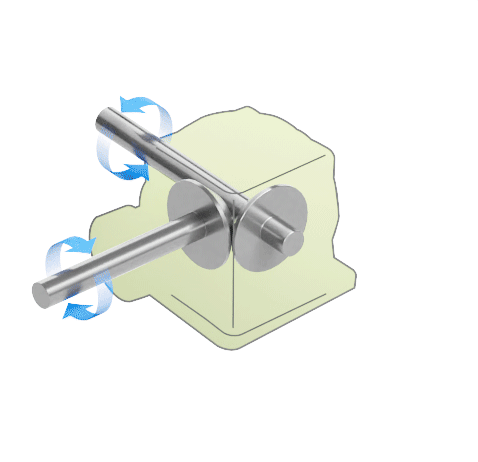

1-L-O  |

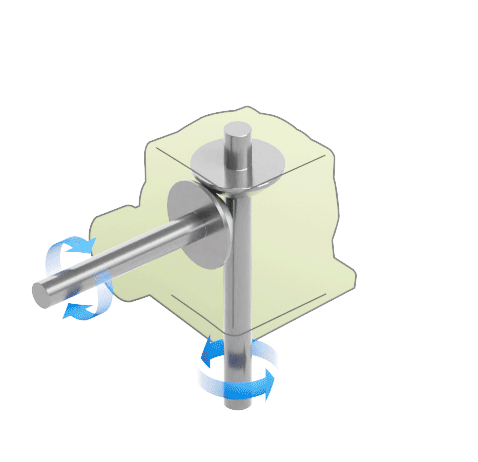

1-D-O  |

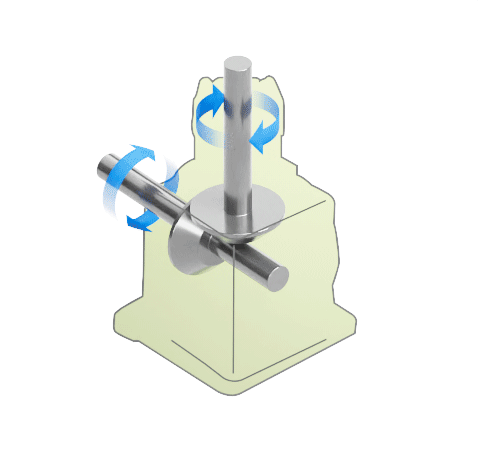

U-L-O  |

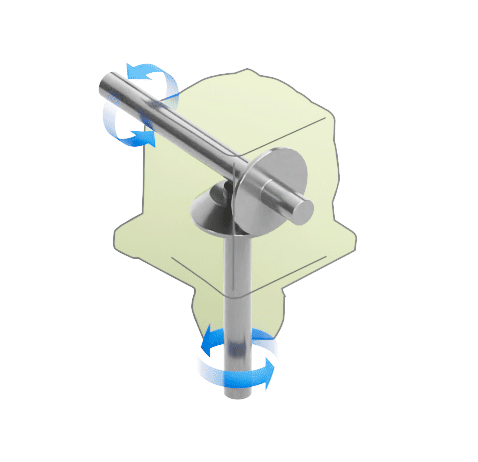

D-L-O  |
1-1-L-O  |

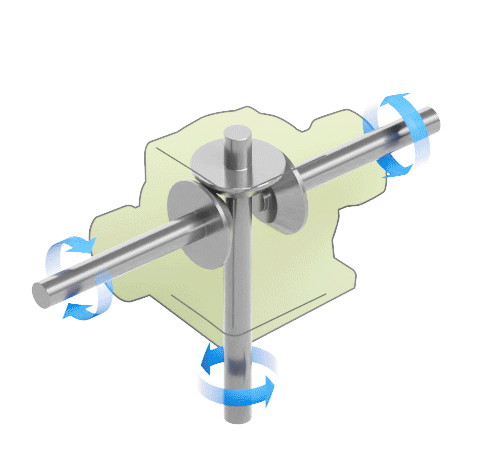

1-1-D-O  |

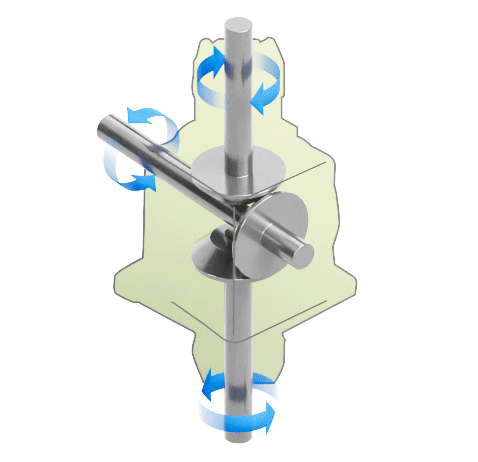

U-D-L-O  |
||

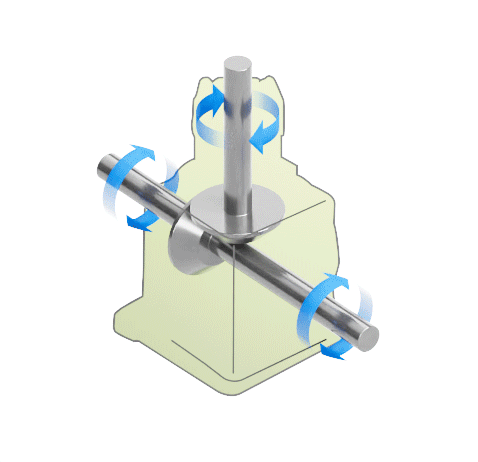

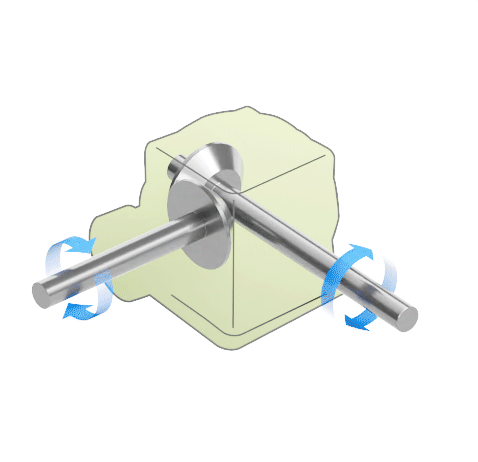

·具有以下軸放置的軸具有相同的旋轉關係:。但是插頭、油尺、銘牌的位置不同，請註意。
U-LR=U-LR-O,U-R=U-L-O,U-L=U-R-O,D-LR=D-LR-O,D-R=D-L-O,D-L=D-R-O
1-1-LR=1-1-LR-O, 1-1-R=1-1-L-O, 1-1-L=1-1-R-O,U-D-LR=U-D-LR-O,U-D-R=U-D-L-O,U-D-L=U-D-R-O
